Oldcastle Infrastructure panel vaults are a unique solution for building a custom structure, especially for utilities that must remain in service. These vaults protect and provide access to subterranean public utility equipment, such as housing underground electrical cables and conduits, fiber optic cables, and communications equipment. Oldcastle Infrastructure Panel Vaults are manufactured as six separate panels that are fitted together as a unit and transported to the project site for installation. With standard and customizable options, these vaults are the perfect example of value-added engineering saving time and money on your next project.
Your Project Deserves Expert Attention
| Name | Model | Height | Width | Length | Diameter | Fitting Size | Carton Qty | Downloads | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
Panel Vault – size varies | Panel Vault | View | ||||||||
|
PDF 020-PNLVT-10.pdf
|
|||||||||||
|
|

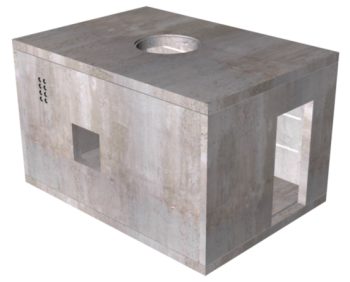

Panel Vault | 382UMPPANELVLT | View | ||||||||
|

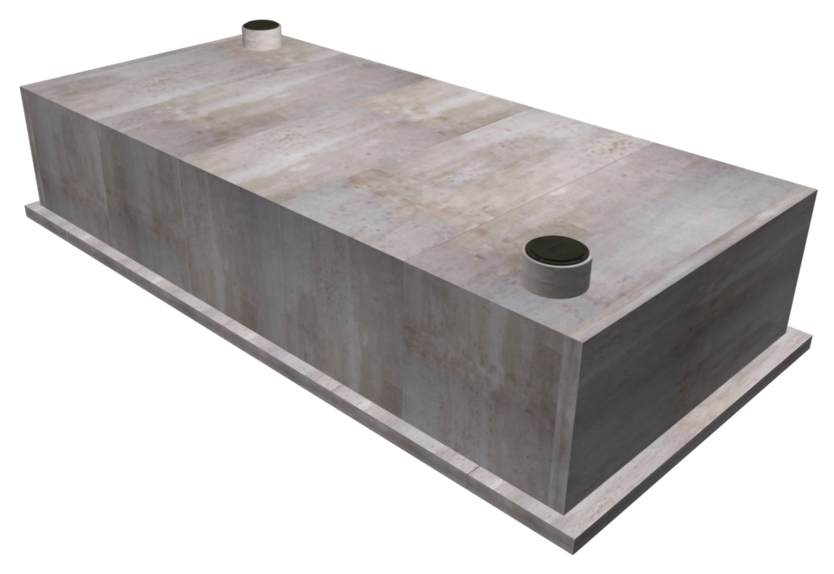

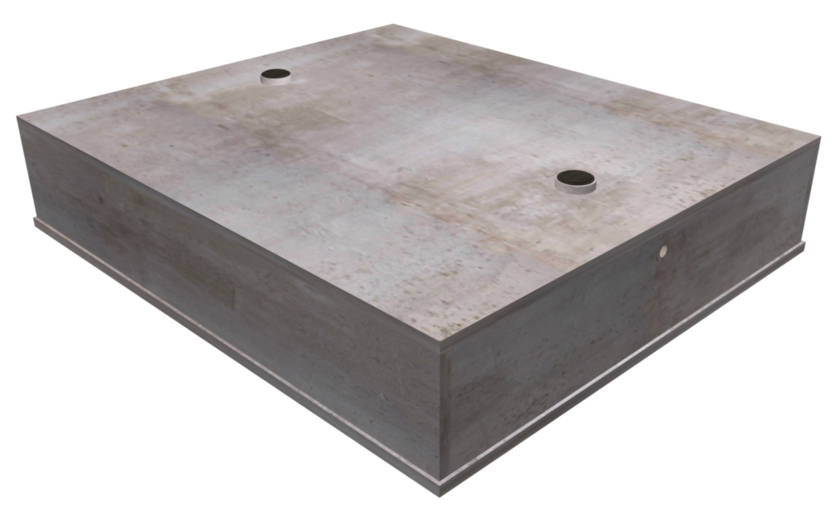

Holding Tank Panel Vault | Holding Tanks | View | ||||||||
|

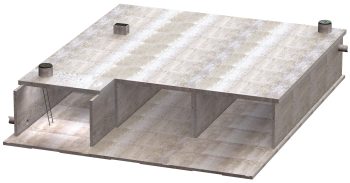

3-Sided Box Panel Vault | Detention Vaults - 3-Sided Box System | View | ||||||||
|

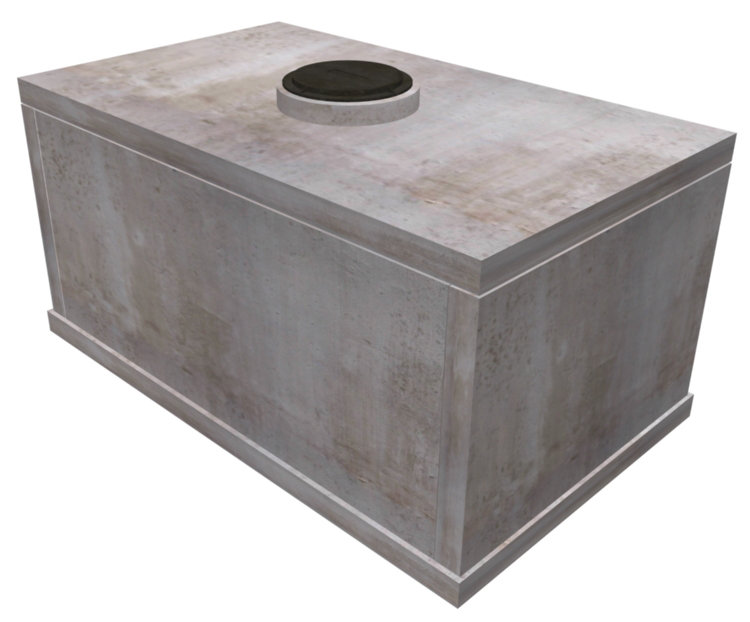

Panel Vault | Varies | View | ||||||||
|
Custom Panel Vault | PV-DETAILS | View | ||||||||
|
|

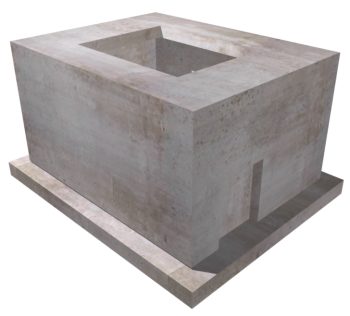

Water Meter Vault-800 | MV-800 | 3’ 10” | 5’ 4” | View | ||||||
|

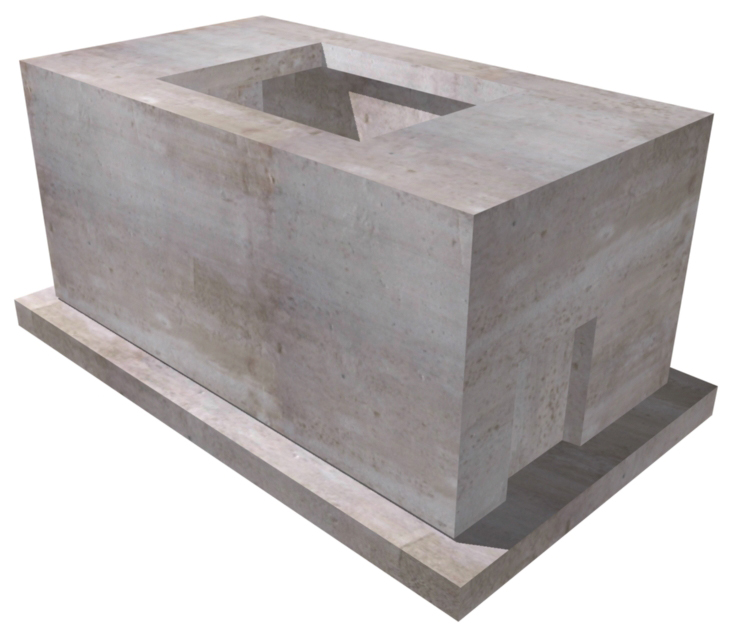

Water Meter Vault-801 | MV-801 | 4’ | 8’ | View | ||||||
|

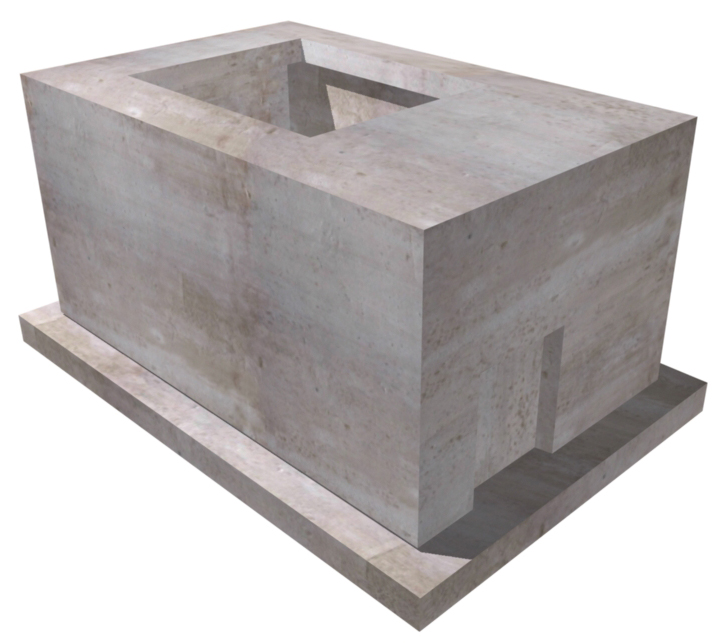

Water Meter Vault-802 | MV-802 | 4’ 6” | 7’ 6” | View | ||||||
|
Water Meter Vault-803 | MV-803 | 6’ | 8’ | View | ||||||
|

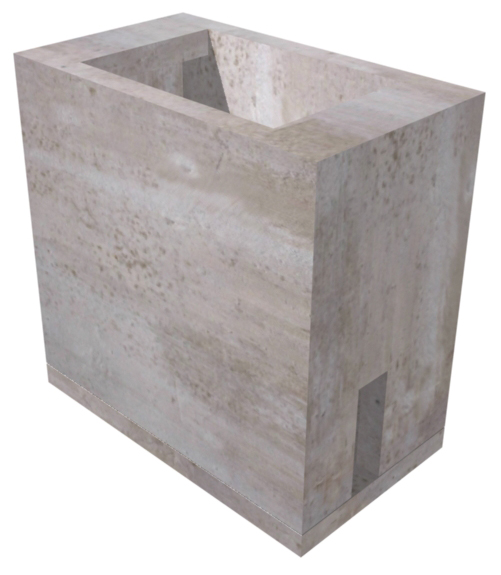

Water Meter Vault-804 | MV-804 | 2’ | 4’ | 4’ | View | |||||
|

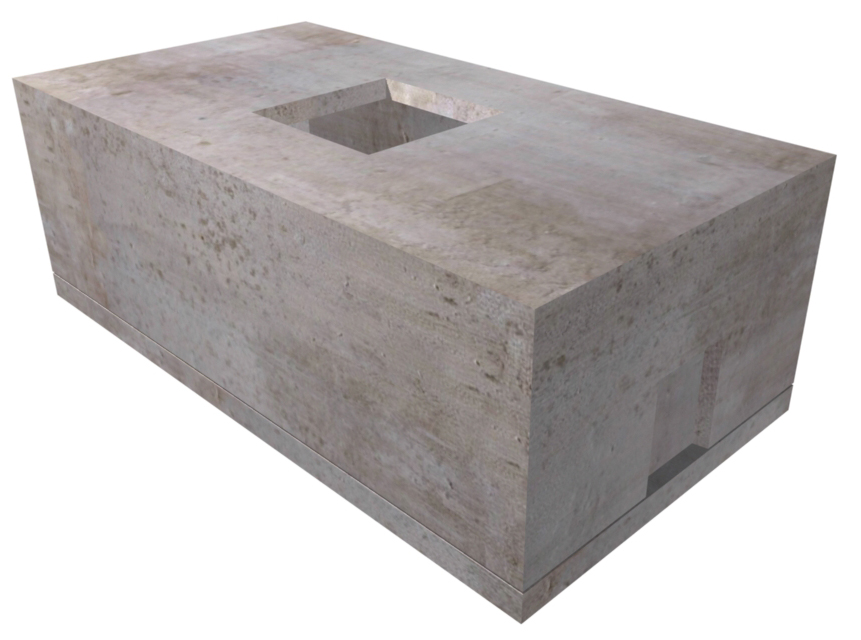

Water Meter Vault-805 | MV-805 | 6’ | 12’ | View | ||||||
|
|
StormCapture® PV Detention Panel Vault | ||||||||||
