Overview

Oldcastle Infrastructure valve vaults protect and provide access to subterranean public utility equipment such as valves or water meters. Oldcastle Infrastructure offers a variety of different designs including one piece, three piece, and multi-piece configurations. With standard and customizable options, these vaults are the perfect example of value-added engineering with preinstalled equipment and accessories saving time and money on your next project. Available features include grade rings & risers, lifters, pulling irons, drainage sumps, term-a-ducts, knockouts, as well as racking to best fit your project needs.

Specs & Guides

Measurement System:

Your Project Deserves Expert Attention

Whether you're looking for additional product information or design assistance, or you’re ready to get a personalized quote, our dedicated team is here to guide you every step of the way.

Product
Availability

For more information on product availability call (888) 965-3227 today.

Product Filters
Search Term:

X

Product Line
Jurisdiction
Materials
Load Rating
Manufacturing Plant
Clear Filters
Name Model Height Width Length Diameter Fitting Size Carton Qty Downloads
660-WA-Fire Service Vault – 3″ Backflow Device 660-WA-TVWD 5’ 2” 3’ 6” 5’ 6” View
PDF 020-660-WA.pdf
DWG 020-660-WA-1.dwg
577-WA-Fire Service Vault – 4″ Backflow Device 577-WA-TVWD 6’ 4’ 2” 6’ 6” View
PDF 020-577-WA.pdf
DWG 020-577-WA-1.dwg
676-WA-Fire Service Vault – 4″ & 6″ Backflow Device 676-WA-TVWD 6’ 5’ 6” 7’ View
PDF 020-676-1-WA-1.pdf
DWG 020-676-1-WA-1.dwg
687-WA-Fire Service – 6″, 8″, & 10″ Backflow Device 687-WA-TVWD 7’ 6’ 8’ View
PDF 020-687-WA.pdf
DWG OR_WIL_8x6x7_BackflowDeviceVaultTVWDDCVDCDV_337-1.dwg
5106-WA-Fire Service Vault – 8″ & 10″ Backflow Device 5106-WA-TVWD 6’ 1” 5’ 10’ 6” View
PDF 020-5106-WA.pdf
DWG OR_WIL_10x5x6_BackflowDeviceVaultTVWDDCVDCDV_338-1.dwg

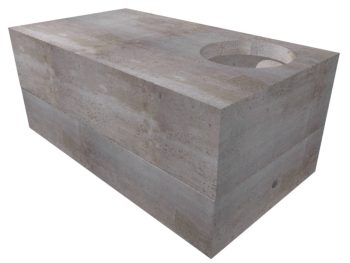

5’x10′ Valve Pit 5X10VP 5’ 10’ View
PDF NE_AVN_5x10xVaries_Valve-Pit-Variable-Height_27372.pdf
DWG NE_AVN_5x10xVaries_Valve-Pit-Variable-Height_27372-1.dwg
4’x4′ Meter Pit MP4X4X4 4’ 4’ 4’ View
4’x6′ Meter Pit MP4X6X6 6’ 4’ 6’ View
PDF NE_AVN_4x6x6_Meter-Pit_29752.pdf
DWG NE_AVN_4x6x6_Meter-Pit_29752-1.dwg
5’x10′ Meter Pit MP5X10X6 6’ 5’ 10’ View
PDF NE_AVN_5x10x6_Meter-Pit_29772.pdf
DWG NE_AVN_5x10x6_Meter-Pit_29772-1.dwg
6’x6′ Meter Pit MP6X6X6 6’ 6’ 6’ View
PDF NE_AVN_6x6x6_Meter-Pit_29792.pdf
DWG NE_AVN_6x6x6_Meter-Pit_29792-1.dwg
6’x8′ Meter Pit MP6X8X6 6’ 6’ 8’ View
PDF NE_AVN_6x8x6_Meter-Pit_29812.pdf
DWG NE_AVN_6x8x6_Meter-Pit_29812-1.dwg
6’x14′ Meter Pit MP6X14X6 6’ 6’ 14’ View
PDF NE_AVN_6x14x6_Meter-Pit_29832.pdf
DWG NE_AVN_6x14x6_Meter-Pit_29832-1.dwg

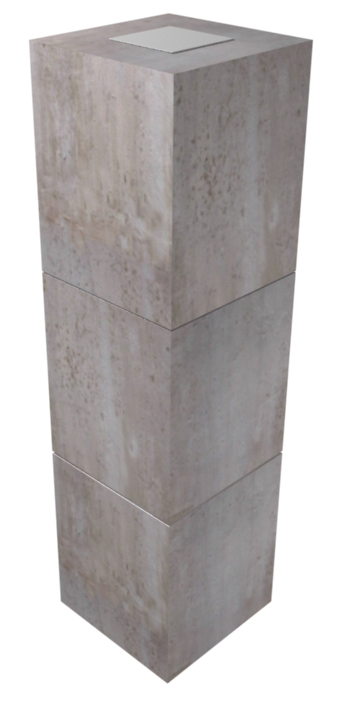

Valve Vault Varies View
PDF 10549_AZ_CHD_Valve_Vault.pdf
DWG AZ_CHD_0x0x0_Valve-Vault_105491.dwg

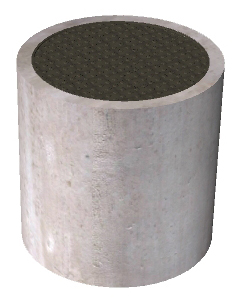

3-RT 1D3116:D31430 1/4″ Diameter Valve Box VB-3RT View
PDF TX_MF_0x0x0_3-RT-10-1-4-Diameter-Valve-Box_124291.pdf

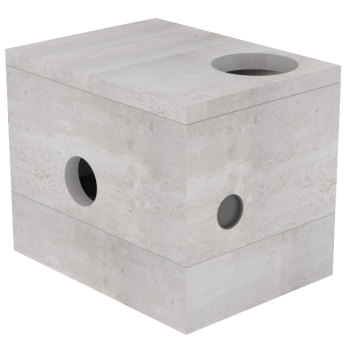

Valve Vault – WSSC View
PDF 365VV-WSSC.pdf
Christy® F08 12” ” ” 9” View
PDF Christy® F08
Christy® G03 12” ” ” 10” View
PDF Christy® G03
Christy® G04 12” ” ” 9” View
PDF Christy® G04
Christy® G05 12” ” ” 11” View
PDF Christy® G05
Christy® G08 12” ” ” 11” View
PDF Christy® G08
