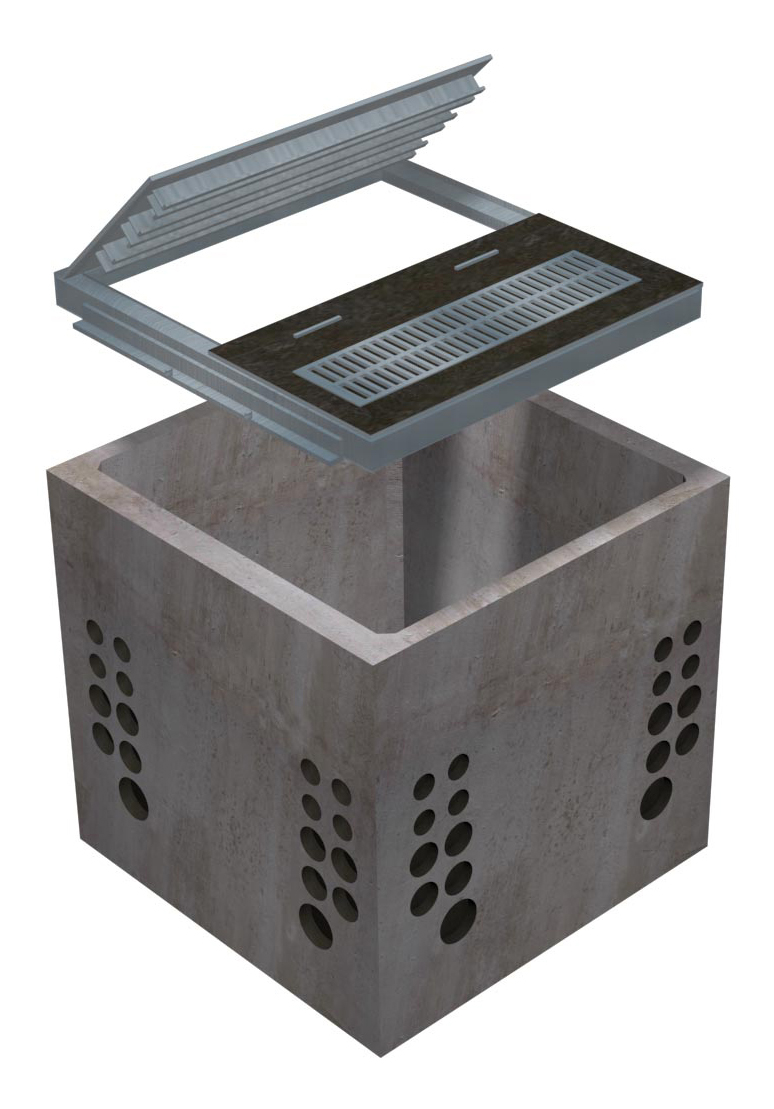

Precast utility vaults are the industry’s leading product choice to protect and provide access to telecommunications and fiber optic utility cabling. Oldcaslte Infrastructure offers a variety of different designs including one piece, three piece, and multi-piece configurations. With standard and customizable options, these vaults are the perfect example of value-added engineering with preinstalled equipment and accessories saving time and money on your next project. Available features include grade rings & risers, lifters, pulling irons, drainage sumps, term-a-ducts, knockouts, as well as racking to best fit your project needs. Three piece vault configurations typically consist of a slab section, a riser section, and a lid section for applications requiring non-confined access where the project calls for a minimum component weight for loading, transport, unloading, and installation.
- Modular Construction
- Base/Bottom Section
- Lids and Top Sections
- Body Slab and Risers
- Frames and Covers
- Embedded Lifters
- Grade Rings and Risers
- Embedded Pulling Irons
- Drainage Sump
- Racking
- Knock-outs
- Rugged durability to protect vital connections from the elements and vandalism
- Customizable sectional design
- Quick and easy install
- Provides critical infrastructure housing and protection
- Integral floor (body slab) optional
- Variety of shapes and sizes
- Cover and protect
- Maintenance and inspection accessibility
- Variety of shapes and sizes
- Variable access opening sizes and locations offered
- Customization to accommodate required depths
- Variety of shapes and sizes
- Variety of sizes and shapes
- Rectangular frames and galvanized covers or manhole frames with cast or ductile iron covers
- Allow for easy install
- Galvanized steel material
- 2, 4, 8, and 20 ton loading capabilities
- 1 ton universal lifters also available
- Elevate access opening covers to grade
- Available in rectangular and round shapes
- Anchor and stabilize cable pulling equipment
- Carbon steel-galvanized material, stainless steel available upon request
- 2″ knock-out hole designed in base section for drain pipe
- Outer lip positively locks the base of pipe into the vault
- Propylene drainage sumps available upon request
- Hold and secure cables or wiring
- Vertical or horizontal adjustability
- Additional cable support arms are available from 4″ to 8″
- Round or rectangular shapes designed in base as well as top sections
- Offered in multiple locations to accommodate various connection sizes and elevations
- Easily broken with a hammer to size

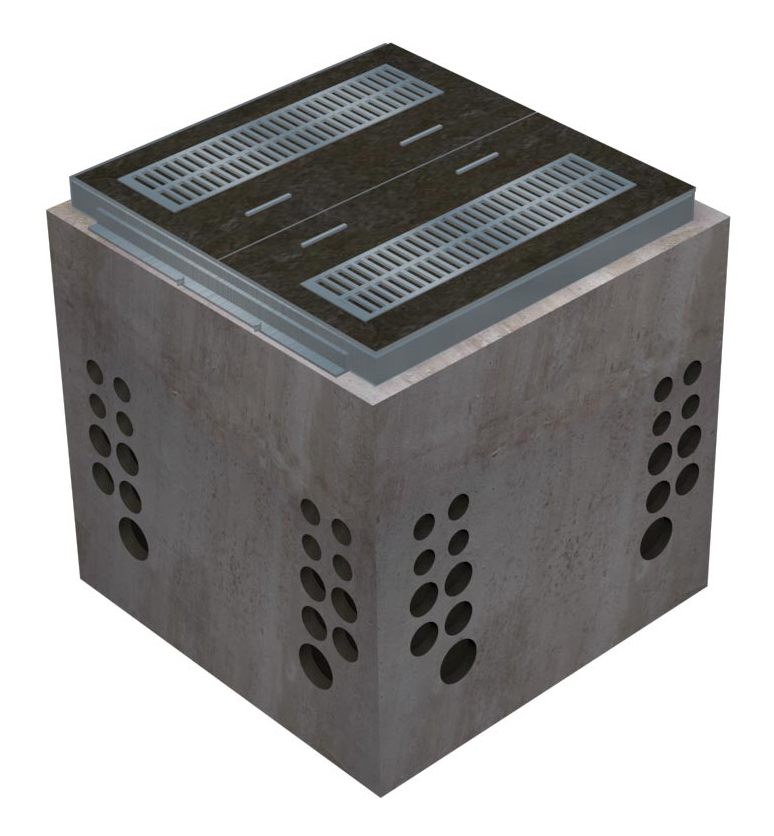

Model: MeID-555
Material: Concrete
Measurement System:
Height: 5’
Width: 5’
Length: 5’
Weight: 11,170 lb
Downloads
PDF: MeID-3B-2.pdf
PDF: MeID-3-3.pdf
DWG: MeID-3-2.dwg
