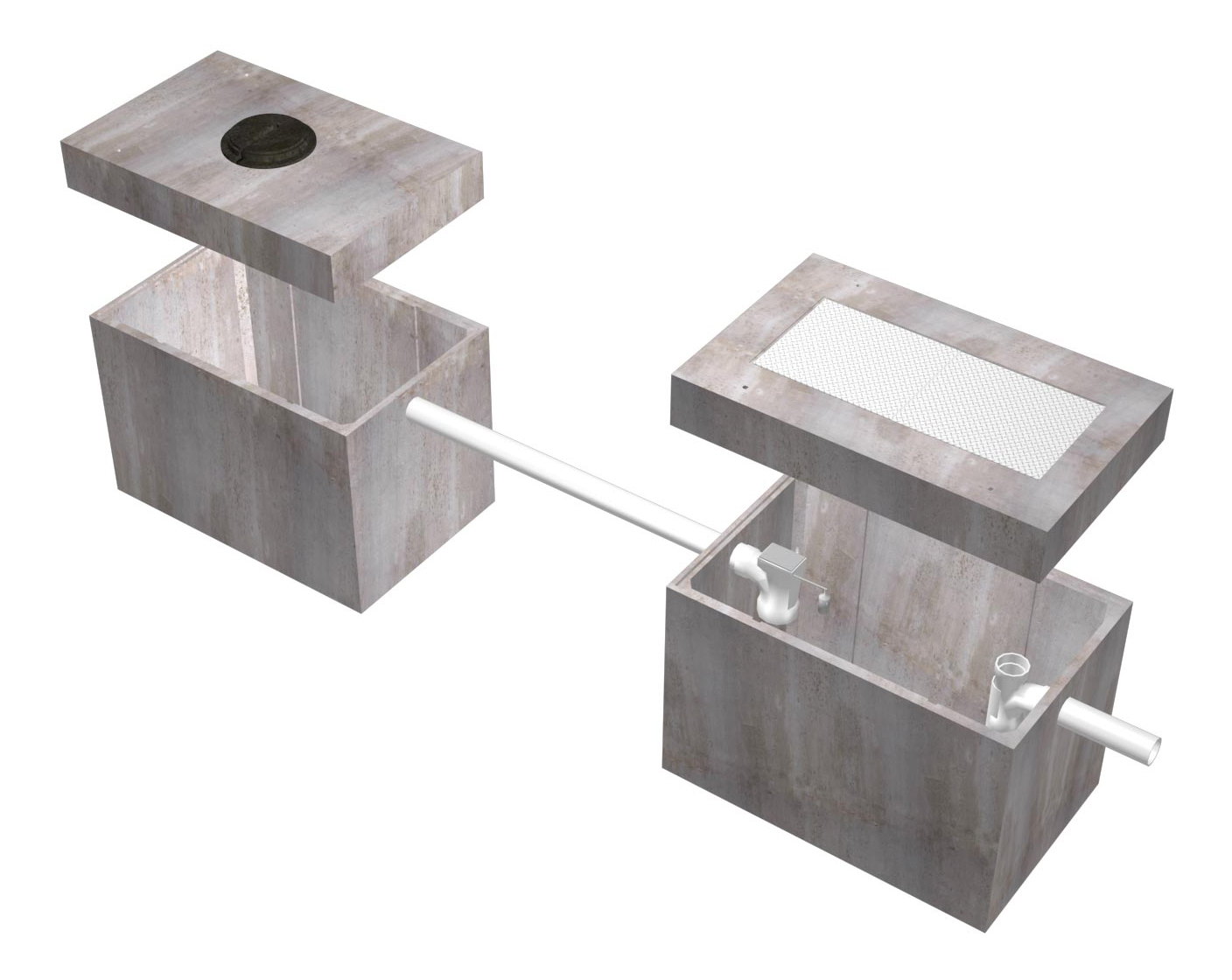

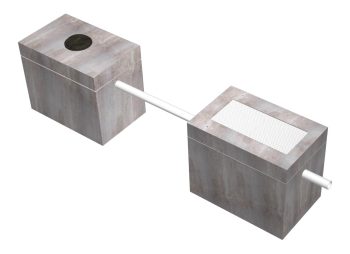

576 Oil Trap Vault 4′ x 6′-6″

• Modular Construction
• Base/Bottom Section
• Sludge weirs, Oil weirs, and Outlet weirs
• Lids and Top Sections
• Riser Sections
• Frames and Covers
• Embedded Lifters
• Grade Rings and Risers
• Knock-outs and Block-outs

• Rugged durability to efficiently slow down the flow of waste water and remove oil byproducts before flowing into a sanitary sewer system
• Customizable sectional design
• Quick and easy install
• Sturdy five-sided watertight design
• Customizable with special accesses, block-outs, and knock-outs
• Variety of shapes and sizes available
• Precast weirs are fitted in the base section
• Create the barrier to capture byproducts
• Your project requirements will determine the number of weirs installed
• Cover and protect
• Maintenance and inspection accessibility
• Variety of shapes and sizes
• Variable access opening sizes and locations offered
• Elevate access to accommodate for varied depths
• Variety of sizes available
• Variety of sizes and shapes
• Rectangular frames and galvanized covers or manhole frames with cast or ductile iron covers
• Allow for easy install
• Galvanized steel material
• 2, 4, 8, and 20 ton loading capabilities
• 1 ton universal lifters also available
• Elevate access opening covers to grade
• Available in rectangular and round shapes
• Available in multiple locations to accommodate various connection sizes and elevations
• Round or rectangular shapes available per design specifications
• Knock-outs are easily broken with a hammer for a desired fit
• Various designs accommodate coalescing media inserts
• Inserts separate oil further utilizing varying degrees of gravity

Model: 576 Oil Trap Vault

Material: Concrete

Measurement System:

Height: 6’ 6”

Width: 4’

Length: 6’ 6”

Weight: 16190 lb
